C8 Corvette Front Lift Lowering Collar Shims (2020+)

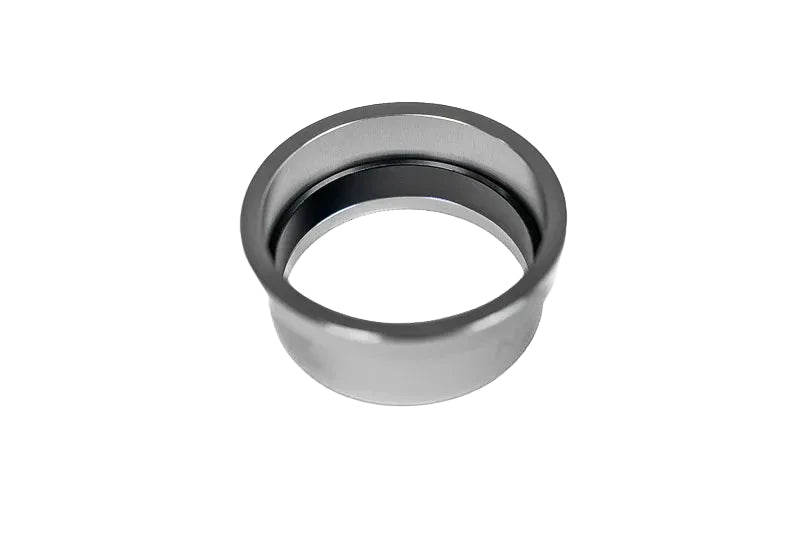

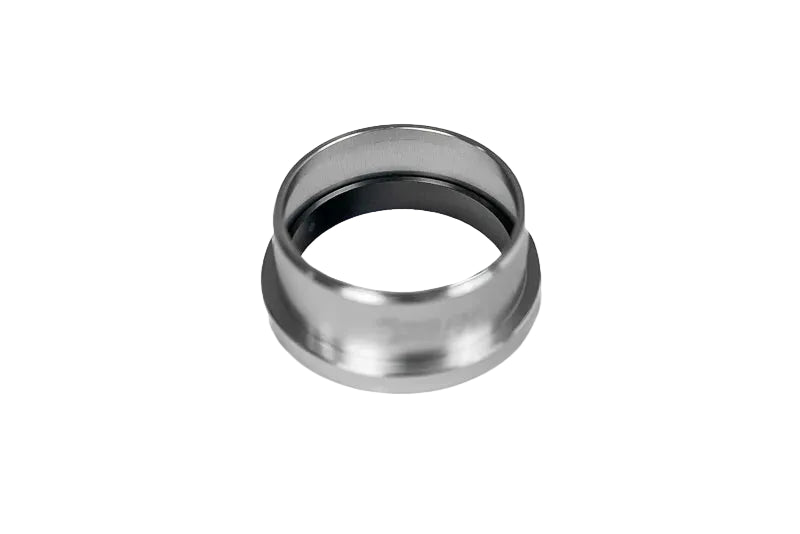

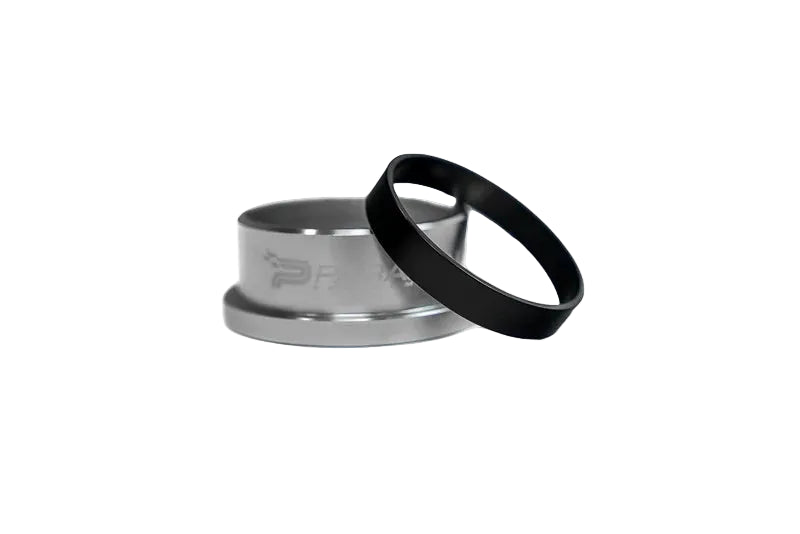

The C8 Corvette Front Lift Lowering Collar Shims are designed for C8s already equipped with front lift lowering collars. Each 3/8-inch shim installs inside the lowering collar to raise the front of the vehicle back up 3/8 inch, allowing you to fine-tune ride height without removing the lowering setup entirely.

Key Features

• 3/8-inch ride-height adjustment
• Designed for use with C8 front lift lowering collars
• Installs inside the lowering collar as a support
• Raises the front ride height approximately 3/8 inch
• Ideal for fine-tuning aggressive lowering setups
• Compatible with factory Front Lift
• Compatible with MagRide and non-MagRide applications
• Lowering collars are not included

Fine-Tune Your C8's Ride Height

These shims are particularly useful when combining 1-inch lowering springs with 3/4-inch front lift lowering collars. Instead of running the full approximately 1-3/4-inch drop, adding the 3/8-inch shim brings the setup to approximately a 1-3/8-inch drop, providing additional ground clearance while maintaining an aggressive lowered stance.

Installation

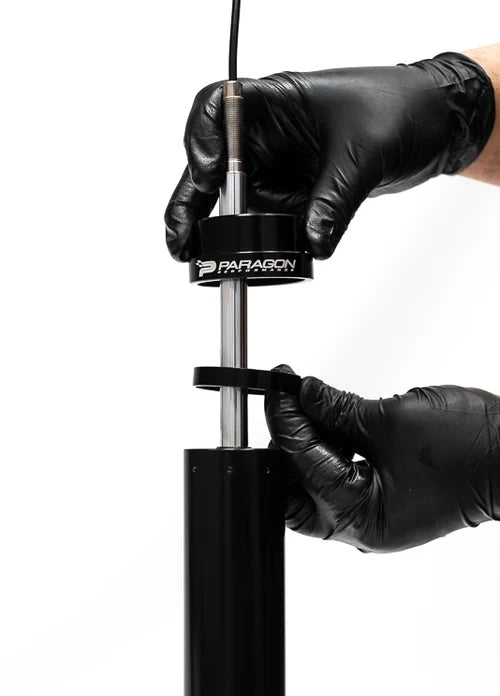

The shim installs inside the existing front lift lowering collar and acts as a spacer to raise the vehicle approximately 3/8 inch.

Estimated installation time: 3 hours

Installation difficulty is rated Moderate / Difficult. Professional installation and a post-installation alignment are recommended.

Vehicle Fitment

2020+ Chevrolet Corvette C8 with Factory Front Lift

Fits:

• C8 Stingray
• C8 Z06
• C8 ZR1
• C8 Grand Sport
• Coupe
• HTC (Hard Top Convertible)
• MagRide and non-MagRide vehicles

Factory Front Lift is required.

Warranty

Lifetime Warranty for the original purchaser. Warranty is non-transferable and subject to applicable terms and conditions.
