C8 Corvette Stingray Front Lift Lowering Kit (2020–2027)

Give your C8 Corvette Stingray a lower, more aggressive stance without sacrificing factory front lift functionality with the Paragon Performance Front Lift Lowering Kit.

Designed specifically for C8 Stingrays equipped with the OEM front axle lift system, these precision-machined lowering collars allow you to lower the front suspension approximately 3/4 inch to 1 inch, reducing wheel gap and creating a more performance-inspired appearance.

Manufactured in the USA from 6061 aluminum, this kit provides a clean, reliable solution for lowering your Corvette while maintaining the convenience of the factory front lift system.

Key Features

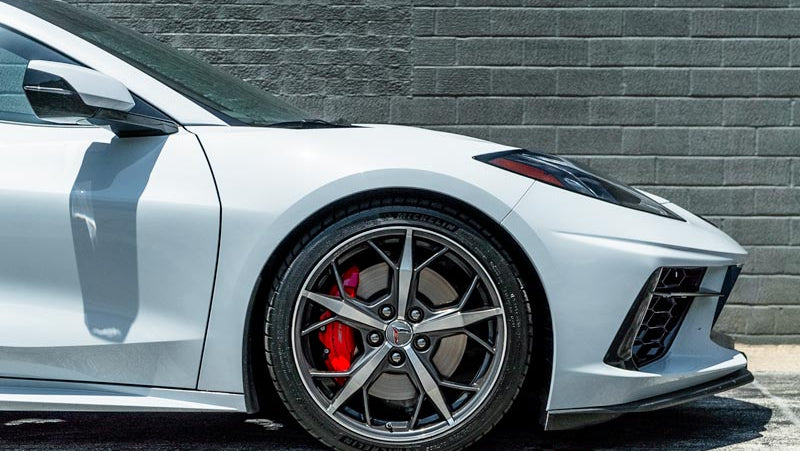

• Lowers Front Ride Height Approximately 0.75"–1"

• Retains Full Factory Front Lift Functionality

• Designed specifically for C8 Stingrays with OEM front lift

• Precision CNC-machined 6061 aluminum

• Black anodized finish with laser-engraved logo

• Designed and manufactured in the USA

• Compatible with factory Magnetic Ride Control

• Works with Stingray Base and Z51 suspension packages

• Includes aluminum brake line bracket spacer

• No Bump Stop Trimming Required

• Optional 3/8" riser shims for ride-height adjustment

• Optional Magnetic Ride socket and de-pin tool

• Approximately 3-hour installation

• Paragon Performance Lifetime Warranty

Adjustable Lowering Options

The factory front lift system limits the traditional suspension lowering adjustments available on C8 Corvettes without front lift.

The Paragon Performance Lowering Collars provide an effective solution, allowing you to achieve a lower front ride height while retaining the factory suspension components.

Available Ride Height Adjustments:

• Approximately 0.75" Drop: Similar to the factory maximum lowering adjustment on applicable non-front-lift Z51 models.

• Up to Approximately 1" Drop: Depending on the vehicle's configuration.

• Optional 3/8" Riser Shims: Allow a more conservative drop or additional ride-height fine-tuning.

For a balanced stance, the front lowering collars can be combined with compatible rear suspension adjustments.

Retains Factory Front Lift Functionality

Unlike modifications that eliminate the factory lift system, these lowering collars allow your Corvette to retain its OEM front axle lift functionality.

Your Stingray will still be able to raise its front end when approaching driveways, speed bumps, and other obstacles.

Enjoy a lower stance during normal driving while keeping the convenience of the factory front lift feature.

CNC-Machined 6061 Aluminum Construction

Developed in-house by Paragon Performance, these collars were designed using CAD software and tested through multiple prototype stages before production.

Each collar is precision-machined from 6061 aluminum and finished in black anodizing for durability and corrosion resistance.

An included aluminum spacer helps reduce tension on the factory brake line bracket following installation.

Optional 3/8" Riser Shims

For owners who prefer a smaller drop or plan to combine the collars with aftermarket lowering springs, optional 3/8-inch riser shims are available.

These shims can help achieve approximately a 3/8-inch drop instead of the full 3/4-inch drop, or fine-tune ride height when used with compatible lowering springs.

Note: Riser shims are optional and must be selected when ordering.

Optional Installation Tools

Magnetic Ride Socket

A specialty socket used during suspension disassembly. This tool may be necessary for installation and is not commonly included in standard tool sets.

Magnetic Ride De-Pin Tool

Designed to simplify removal of the Magnetic Ride Control electrical connector pins during suspension disassembly.

Both tools are available as optional add-ons.

Installation

Installation requires removing and disassembling the front suspension strut assemblies to install the lowering collars.

Estimated Installation Time: 3 Hours

Installation Difficulty: Easy to Moderate, according to the manufacturer.

Required Equipment Includes:

• Spring compressors

• Jack and stands

• Torque wrench

• Appropriate sockets and hand tools

• Magnetic Ride specialty tools, when applicable

Professional installation is recommended. After installation, verify front lift operation, brake line clearance, suspension clearance, and wheel alignment.

No bump stop trimming is required.

Why You Need This

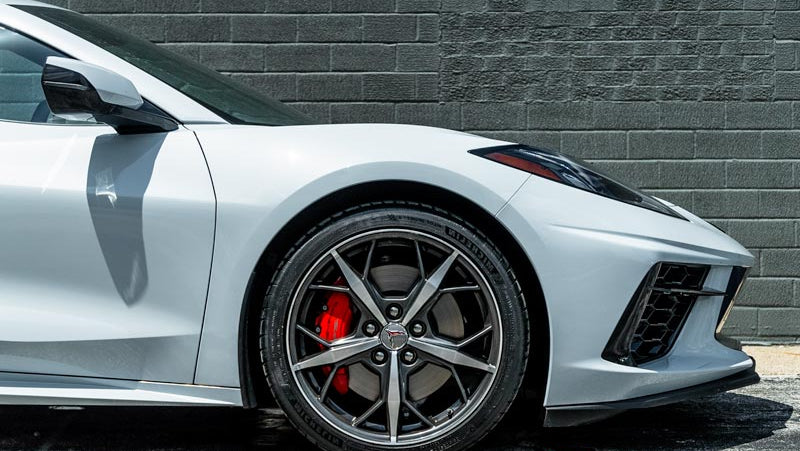

The C8 Corvette Stingray looks incredible from the factory, but the stock ride height can leave more wheel gap than many enthusiasts prefer.

The Paragon Performance Front Lift Lowering Kit allows you to achieve a lower, more aggressive stance without giving up the factory front lift system.

With precision CNC-machined aluminum construction, adjustable lowering options, and compatibility with OEM suspension components, this kit is ideal for owners who want to improve their Corvette's appearance while retaining everyday usability.

Whether you're completing a wheel and tire setup, installing aftermarket lowering springs, or simply looking to improve your Stingray's stance, these lowering collars provide a practical and effective solution.

Vehicle Fitment

2020–2027 Chevrolet Corvette C8 Stingray

• Stingray Base Suspension

• Stingray Z51 Suspension

• Coupe

• HTC / Hardtop Convertible

• Magnetic Ride Control Equipped

• Non-Magnetic Ride Control Equipped

• Factory Front Lift System Required

Important: This kit is designed specifically for Stingray models equipped with the factory front lift system. It is not intended for vehicles without OEM front lift.

What's Included

• Paragon Performance Front Lift Lowering Collars

• Aluminum Brake Line Bracket Spacer

Optional Add-Ons:

• Magnetic Ride Specialty Socket

• Magnetic Ride Connector De-Pin Tool

• 3/8" Riser Shims

Optional accessories are included only when selected during purchase.

Warranty

Paragon Performance Lifetime Warranty

Warranty applies to the original purchaser only and is non-transferable. Manufacturer terms and conditions apply.
